针尖台样品台控制器 Unisurface SPC-STG

发布日期: 2020-03-22　　浏览次数：　　

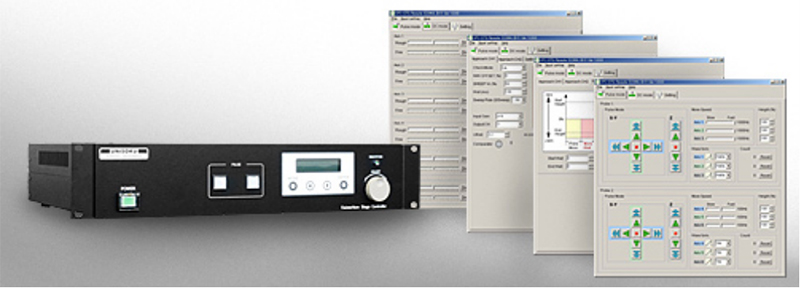

Piezo Motor Controller
Unisurface SPC-STG

Advanced controller for inertial-drive piezo stages

● Embedded ARM MPU achieves automatic controls and autonomicus motions.
● Intuitive operation and advanced applications can be performed by PC.

特征
　● Inertial-driving and static DC motion
　● Compact feedback control
　● Approaching (soft-landing) function
　● Embedded memory keeps "as set" configurations
　● Stand alone operation
　● Communication with PC through USB
　● Remote operation by handsets

应用
　● Micro probers positioning
　● Sample stages positioning
　● Manipulation of Rotation stages
　● Soft-landing of micro probes
　● Force curve measurements

Output
　● Six channels
　● -150 V to +150 V (positive terminal)
　● +150 V to -150 V (negative terminal)
　● 16 bit resolution

Signal Input
　● Two channels
　● ±10 V
　● 12 bit resolution

Intelligent Control
　● Feedback control
　● Approach motion

Accessories
　● Install CD
　● User's manual
　● USB cable
　● AC cable
* Stage units are not included.

参数

Items		Specs	Remarks
Size and Weight	Dimensions	W430 × D350 × H88 mm	EIA 19 inch rack 2U size
Size and Weight	Weight	Approx. 8 kg	-
Power	AC Voltage	100 VAC (50/60 Hz)	Selectable from 110, 115, 120, 220, or 240 VAC
Power	Current	0.6 A	-
DC Power Out*1	Connector	4-pin connector × 2	Hirose RM12BRD-4S
DC Power Out*1	Voltage	±15 V	Max. 30 mA
Environment	Temperature	5°C to 40°C (no condensation)	temperature fluctuation < ±2°C
Environment	Humidity	less than 60%	-
Drive Output	Channel	6	Positive and negative voltages for each channel
	Connector	6 pin Amphenol connector × 2	MS3102A14S-6S compatible
	Voltage Range	-150 V ~ +150 V (16 bit)	-
	Polarity	Switchable Stage	Individually switchable
Analog Input*2	Channels	2	-
	Connector	BNC (female) × 2	-
	Voltage Range	-10 V ~ +10 V (12 bit)	-
Digital Input*3	Port Number	4	-
	Connector	D-Sub 15 pin (female) × 1	-
	Circuit	TTL	Pulled up to +5 V with 4.7 kΩ inside
Inertial Driving	Pulse Type	4 types (sawtooth, parabolic, etc.)	Individual channel setting
	Frequency	1 Hz, 50 Hz, 100 Hz, 500 Hz, 1 kHz	Individual channel setting
	Counting Pulse	Possible	Continuous, single-shot, any number of shots
	Pulse Height	0 to ±150 V	Individual channel setting
DC Driving	Rough Range	-150 V ~ +150 V	-
	Fine Range	-15 V ~ +15 V	-
	Speed	50 V/s to 1000 V/s	Common for all channel
Feedback Control	Input/Output	Single input, Single output	-
	System	2 systems	Simultaneously controllable
	Driving Type	DC	-
	Control Type	Three-level speed Integral-control	-
Approach Motion	Input/Output	Single input, Single output	-
	System	2 systems	Simultaneously control unavailable
	Driving Mode	Inertial drive	Switchable to feedback control after approaching
	Proximity Sense	Comparing signal to threshold	4 kinds comparison (UP, DOWN, UP & DOWN, SHIFT)
PC Connection	Interface	USB	USB 2.0 recommended
	PC Specs	Pentium4, 1 GHz, 1 GB RAM	-
	OS	Windows XP, Windows 7	32/64 bit
	Communication	USART	Virtual COM port
	Multiple Connect	less than 8 units	Empty COM ports (below COM20) are required
Remote Control	Handset	UNISOKU handset RM10J	Connects directly to SPC-STG
Remote Control	Control Pad	USB type gamepad*4	Connects to PC (SPC-STG Remote Software)

*1) Power supply for pre-amplifiers
*2) Reference signal inputs for feedback control or approaching
*3) Inputs for limit switches or external triggers
*4) Automatic shooting function or analog-mode are not supported
